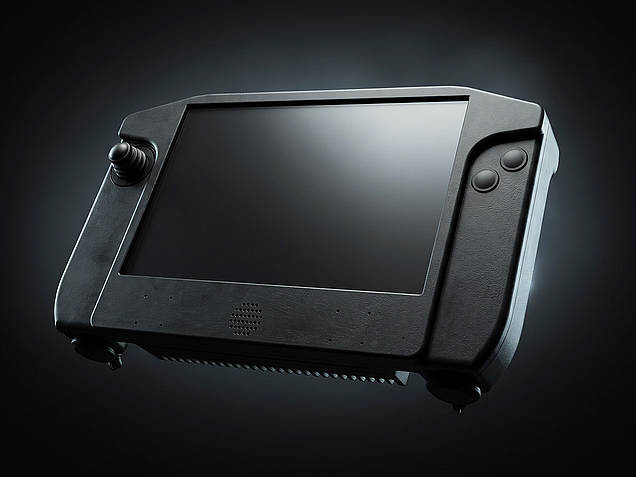

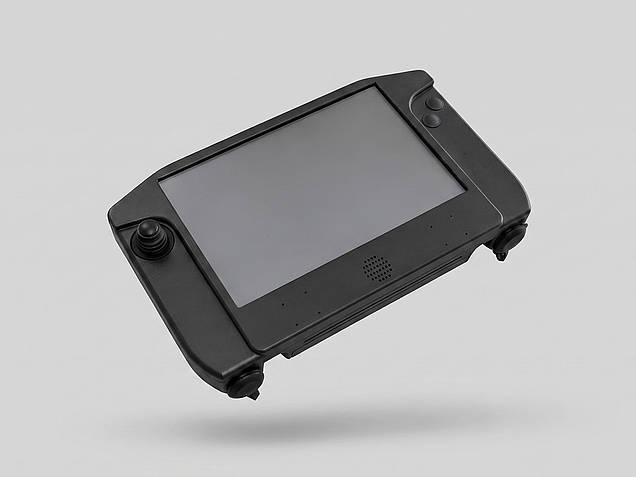

Edge AI Mission System is a portable 10.1” mission controller reference platform for defence OEMs, primes and ISVs, running vision, speech and multimodal AI entirely on the device - fanless, battery-powered, with no link to a data center.

edge-ai-mission-system-front-view-light

Offline-first by design

Inference and interaction run fully on-device. Connectivity is there when the mission allows it, not because the AI depends on it.

Situational awareness on-device

Depth and RGB vision feeding real-time detection, tracking and sensor fusion, with overlays rendered live on the operator's display.

Conversational HMI

Directional microphone array with beamforming, noise cancellation and barge-in, driving local speech pipelines for hands-busy, eyes-up operation.

Modular compute core

Carrier, mechanics, thermal design and BSP are built around a COM Express compute socket, keeping the platform open to derivative designs.

Missions generate more sensor data than any link can carry back. When the connection is degraded, denied or simply undesirable, intelligence has to be extracted where it is produced. Built on Intel® Core™ Ultra Series 3 Processors, the platform sustains concurrent CPU, GPU and NPU workloads in a handheld, fanless enclosure - on battery, in the field.

CPU, GPU and NPU on a COM Express Type 6 module, mounted on a device-specific carrier board.

Vision, language and speech pipelines running in parallel, entirely on-device.

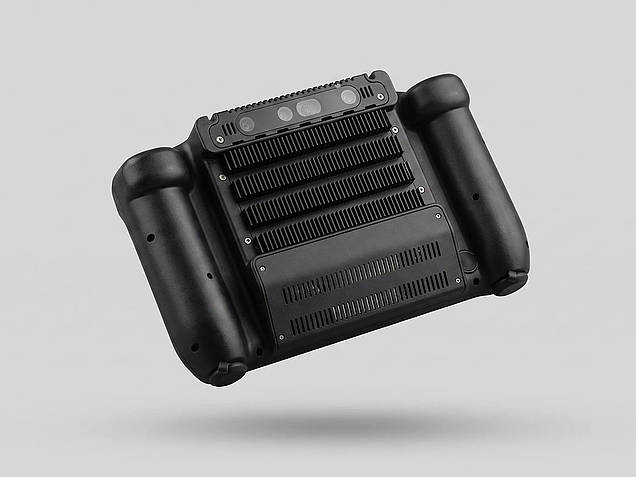

Fully passive thermal design with sealed housing and external heatsink. No moving parts, no intake.

Ubuntu LTS or Clea OS, containerd and K3s, with GPU and NPU passthrough into your containers.

Architecture illustration

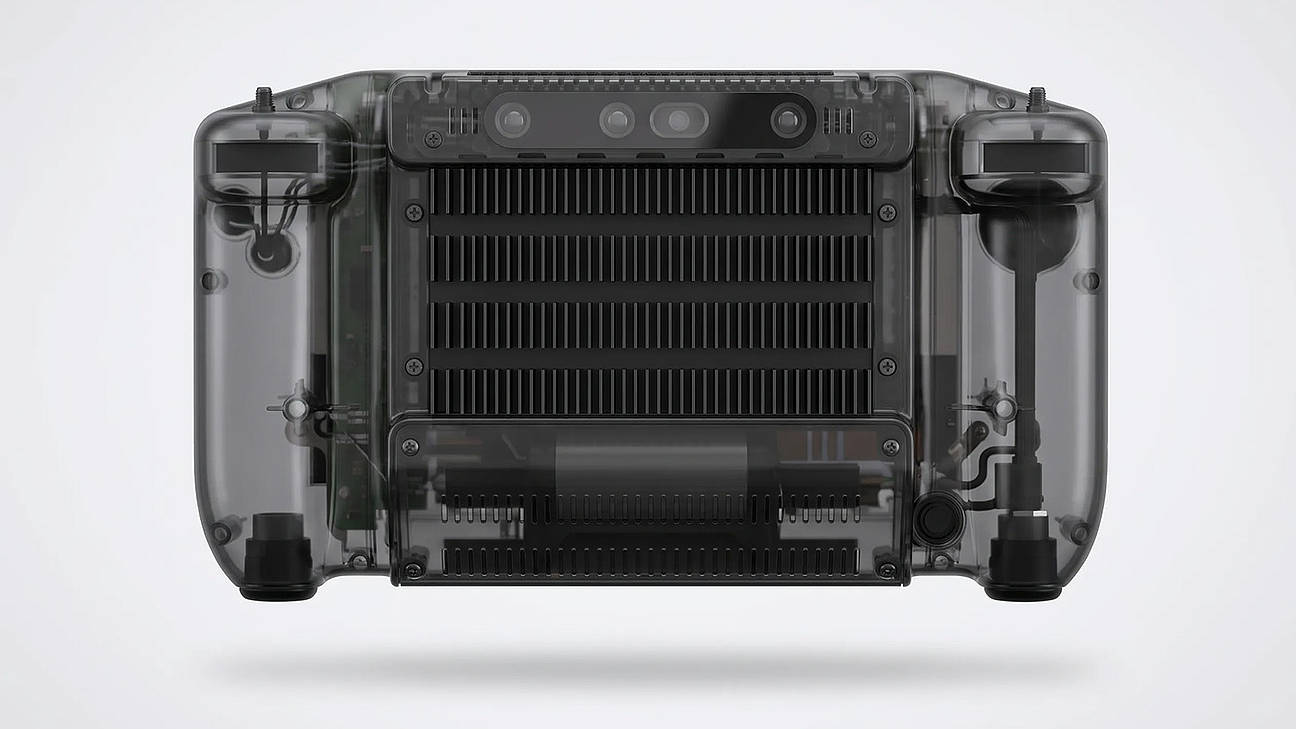

Architecture illustration: fully passive cooling across the compute area, a modular Computer on Module on a device-specific carrier board, and a removable battery. No fans, no intakes, nothing to clog in the field.

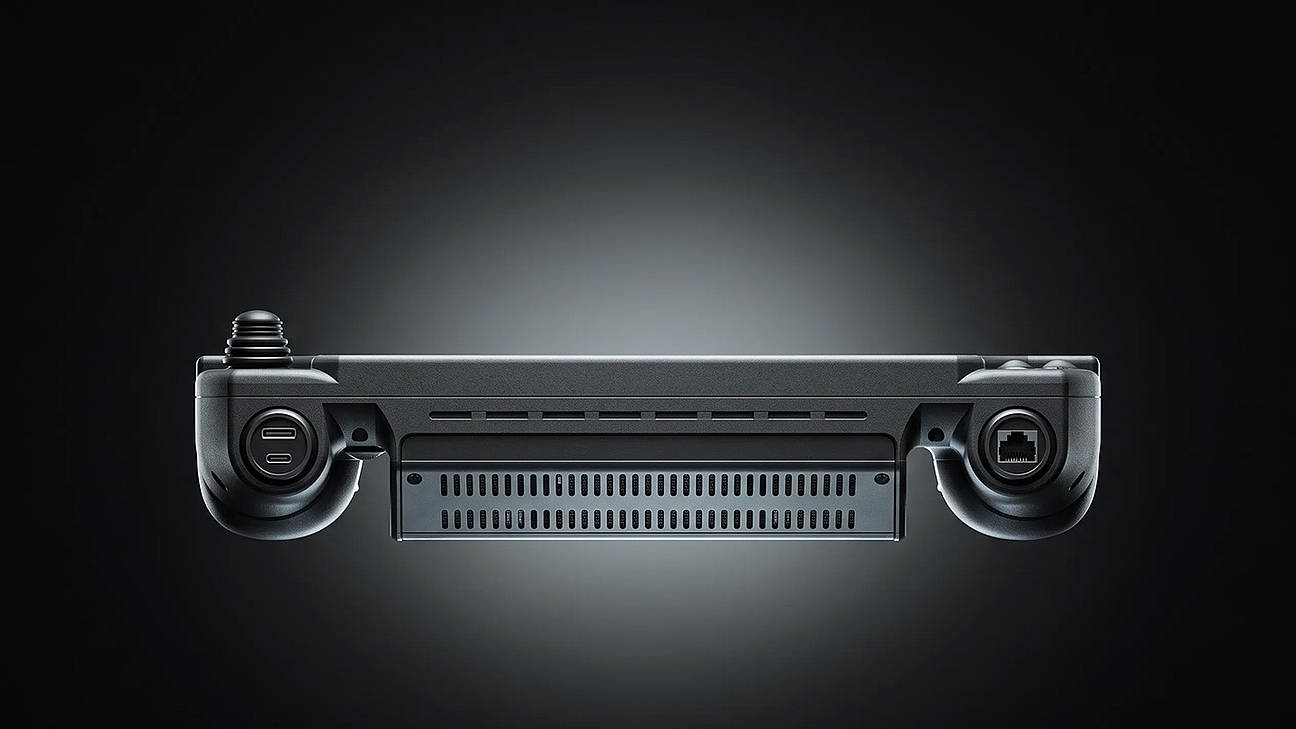

The platform carries a full set of wired and wireless interfaces with expansion paths for additional radios, so integrators can shape the communications stack around the mission profile rather than around the hardware.

edge-ai-mission-system-connectors-usb-c-ethernet

Removable battery + USB-C power

2.5 GbE with TSN support

M.2 slots - Wi-Fi 6E / 7 and LTE

USB 3.2 Gen1 service port

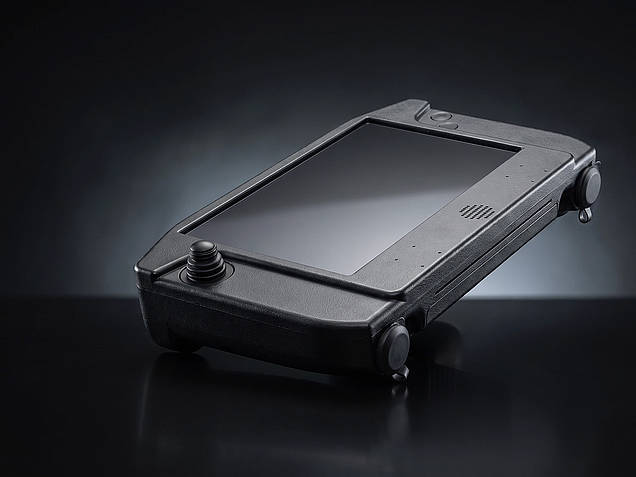

A 10.1” display built for sunlight and gloves

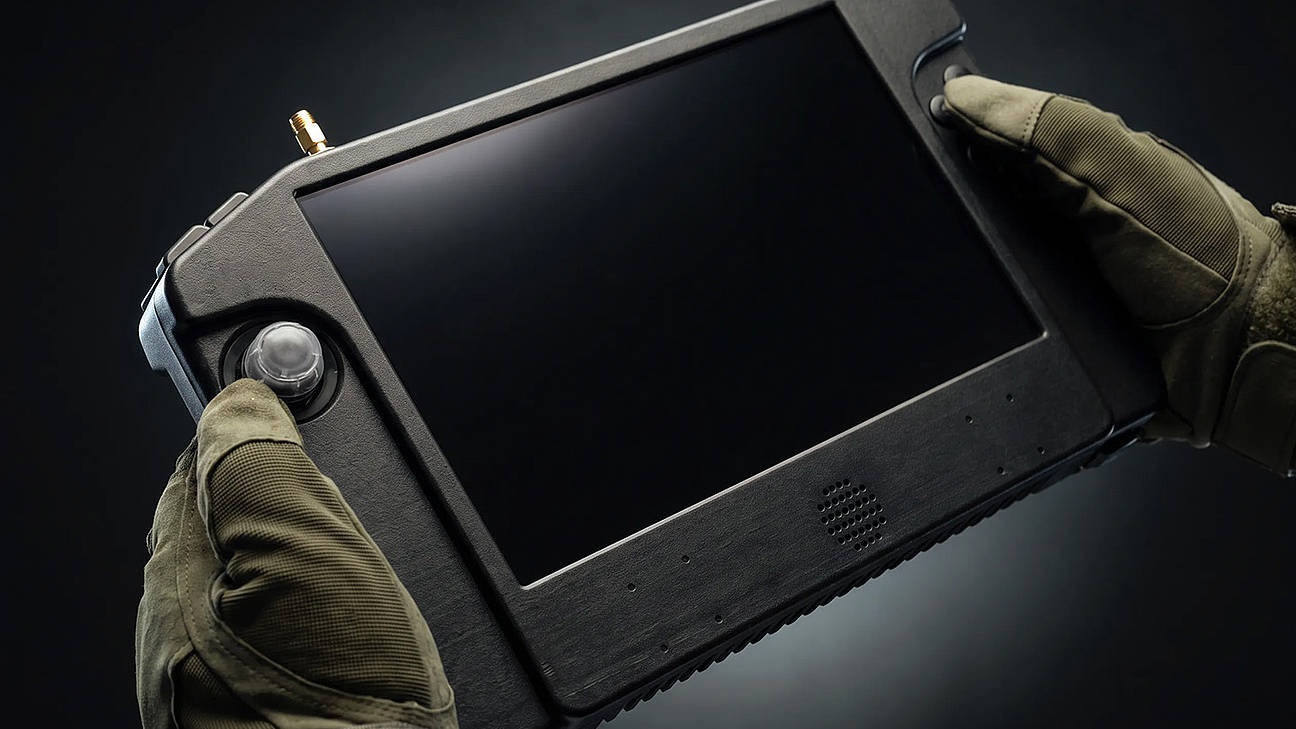

The operator interface is the mission interface. The display, touch layer and cover glass are specified for outdoor readability and gloved operation, with dual joystick control and mission pushbuttons integrated directly into the enclosure.

  • Resolution 1920 × 1200, 16:10 aspect ratio
  • Projected capacitive multi-touch, glove-capable
  • Sun-readable brightness
  • Chemically strengthened cover glass, optical bonding
  • Integrated joystick and mission pushbuttons

Request a technical briefing

edge-ai-mission-system-front-angled-display

Three roles where the compute has to travel with the operator, and the answer has to arrive before the connection does.

Applications and use cases

The operator carries the compute. Detection and tracking overlays render on the handheld, and the mission picture holds when the link does not.

A control station that fits in two hands: joystick and mission buttons for the vehicle, on-device vision for what its sensors send back.

Depth and RGB streams fused and interpreted where they are captured, so actionable information can be generated locally without requiring every raw stream to be sent upstream.

Yocto Logo
Clea Logo

The platform boots Ubuntu LTS or Clea OS, SECO's Yocto-based operating system. AI workloads for vision and multimodal interaction run as containers on top of it.

Applications run under container with K3s orchestration, and get direct GPU and NPU access from inside the container — so your own models and pipelines run with direct access to the accelerators. A local registry supports air-gapped deployment.

Clea OS brings secure boot chains, controlled OTA updates, system integrity enforcement and long-term maintainability, aligned with the Cyber Resilience Act (CRA).

Explore Clea

SECO designs and manufactures end-to-end embedded and mission-critical systems: 45+ years, 800+ people with over 30% in R&D, 9 R&D centres and 5 production plants across 3 countries. SECO USA (Rockville, MD) has direct experience designing and delivering battery-operated handheld controllers.

AS9100D · ITAR registered

SECO USA is certified for design and production of electronic systems. CAGE code 8Z220.

ISO 9001

Construction, realization and technical assistance of electronic boards and embedded systems.

ISO 27001

IT and physical infrastructure management across design, production and support.

Design to MIL-STD and DO standards

SECO can support MIL-STD-810, MIL-STD-461, DO-254 and DO-178 design requirements in the product-specific design.

edge-ai-mission-system-rear-view-light

Where the platform is today

The reference platform exists as functional hardware. Reference kits can be made available for evaluation under a technical engagement.

It is not an off-the-shelf catalog product: it is a reference design — functional hardware plus the engineering package behind it — meant to let you evaluate the architecture and then move into a qualified, application-specific product program with SECO, instead of starting a handheld design from scratch.

Talk to our defence engineering team

Start from a platform that already works

Bring us the mission profile. We bring a working handheld, the engineering behind it, and a western supply chain that can carry it into production.
