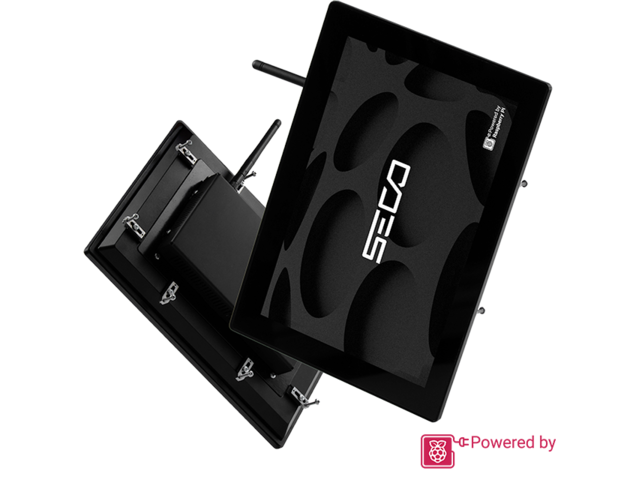

Built with rock-solid commercial-grade components and powered by the mighty Raspberry Pi Compute Module 5, the Pi Vision 10.1 CM5 isn't just another screen. It's a professional touch display platform that's actually developer-friendly and truly production-ready.

pi-vision

  • 10.1” Capacitive Touch Display: 1280x800 resolution

  • Ingress protection IP66 (front) and high brightness display

  • Industrial-grade features: Panel mounting, fanless

Performance and Storage

Power and memory for every application

  • CM5 Powerhouse: Broadcom BCM2712 Quad-core Cortex-A76 + A53
  • Up to 8GB RAM with 64GB built-in eMMC
  • Scalable solutions for prototyping and mass deployment

Connectivity and Compatibility

Always connected, no limits

  • Wi-Fi 5 (802.11ac) and Bluetooth 5.0 onboard
  • Flexible I/O interfaces: PCIe 1x, 2x USB, 2x HMI
  • Native compatibility with the Raspberry Pi ecosystem, including accessories, camera, and HATs

Design and Durability

Build to resist and last over time

  • Fanless aluminum enclosure with panel-mount support
  • IP66-rated front ingress protection with high-brightness display
  • OS-agnostic: pre-configured Raspberry Pi OS with full support for Yocto-based Clea OS

With Pi Vision 10.1 CM5, you get a complete set of internal and external ports, designed to give you maximum flexibility when connecting sensors, modules, and accessories.

Pi-Vision-content-02
Pi-Vision-content-03

Pi Vision 10.1 CM5 is designed to adapt to multiple professional scenarios, reducing development time and integration complexity. Thanks to its industrial-grade robustness, native Raspberry Pi compatibility, and multi-display support, it is the ideal choice for:

image-25929

Smart Building and HVAC

Environmental monitoring, control panels, energy efficiency management

image-25806

Industrial & Factory control

Reliable HMIs for demanding environments

image-25808

Retail & Kiosk

Interactive POS, info totems, and dynamic digital signage

image-25810

Vending machine & Smart appliances

Rugged touch interfaces for smart and IoT-ready machines

We've done the heavy lifting so you can focus on innovation.

Raspberry Pi OS, Pre-Loaded

Start coding immediately on the platform you know and love. Environment ready for Docker, Node.js, Python, TFLite.

Raspberry Pi Logo

Fully compatible with the Raspberry Pi ecosystem

YOLO v5
edge impulse
Tensorflow
Node-RED
docker logo
MQTT
Home Assistant
MachineChat
fuxa
SenseCraft EDGE

Go into production with an enterprise-ready security platform

Clea Logo

Secure OTA updates and fleet device management. A/B partitioning for safe rollback, Containerized application support, IN13-ready, Ready to connect to the Clea IoT Suite.

Curious about cloud communication and telemetry? Try Clea for free and see how it supercharges your solution.

Push updates to AI models and application logic remotely, thanks to out-of-the-box edge-ready orchestration.

Compliance with EN18031-1 standards for secure and reliable embedded systems.

The Pi Vision 10.1 CM5 is carved from a single block of precision-milled aluminum, creating a rugged, fanless, industrial-grade chassis.

  • Maximum durability in challenging environments

  • Passive thermal dissipation with no fans

  • Professional aesthetics suitable for public installations

Pi Vision parts

Integrate bracket. With mounting clips for panel mounting, there is no need to drill holes in a fixture. This saves you the time for mounting and guarantee the aesthetic look of the wall after the unit gets removed.

Pi Vision mounting

The Pi Vision 10.1 CM5 is built for the real world. Its IP66 certification means it's completely sealed against dust and protected from low-pressure water jets. You can deploy it confidently in dusty factories or on a shop floor where spills might happen, knowing it's designed to withstand the elements.

Pi Vision water resistant
Pi Vision Front

Pi Vision 10.1" CM5

2GB / 16GBeMMC / Wi-Fi

239€

Register now

*Available late November

CPU

Broadcom BCM2712, Quad-core 64-bit
Arm Cortex-A76 (Armv8) SoC @ 2.4GHz

Memory

2GB LPDDR4-4267 SDRAM with ECC

 Mass Storage

16GB eMMC flash memory
microSD card socket for CM5Lite modules

 Connectivity

2.4 GHz, 5.0 GHz IEEE 802.11 b/g/n/ac wireless
Bluetooth 5.0, BLE
1x Gigabit Ethernet BHY supporting IEEE 1588

USB

2x USB 3.0 sockets

PCI-e

M.2 M key PCIe socket

Video resolution

10.1" display, resolution 1.280 x 800, LED lifetime 50K hours,
400cd/m² brightness

 Serial ports

HAT footprint with 40-pin GPIO connector
Up to 5 x UART
Up to 5 x 12C
Up to 5 x SPI
1 x SDIO interface
1 x DPI (parallel RGB display)
1 x 12S
Up to 4 x PWM channels
Up to 3 x GPCLK outputs

 Graphics

VideoCore V3D VII GPU 800 MHz

 Power supply

External +5V USB-C PSU

 Operating system

Clea OS (Linux Yocto)
Raspberry Pi OS

 Operating temperature

0 - 60 °C

 Dimensions

270,1 x 187,1 x 51,7 mm

Pi Vision Front

Pi Vision 10.1" CM5

8GB / 64GB eMMC / Wi-Fi

299€

Register now

*Available late November

CPU

Broadcom BCM2712, Quad-core 64-bit
Arm Cortex-A76 (Armv8) SoC @ 2.4GHz

Memory

8GB LPDDR4-4267 SDRAM with ECC

 Mass Storage

64GB eMMC flash memory
microSD card socket for CM5Lite modules

 Connectivity

2.4 GHz, 5.0 GHz IEEE 802.11 b/g/n/ac wireless
Bluetooth 5.0, BLE
1x Gigabit Ethernet BHY supporting IEEE 1588

USB

2x USB 3.0 sockets

PCI-e

M.2 M key PCIe socket

Video resolution

10.1" display, resolution 1.280 x 800, LED lifetime 50K hours,
400cd/m² brightness

 Serial ports

HAT footprint with 40-pin GPIO connector
Up to 5 x UART
Up to 5 x 12C
Up to 5 x SPI
1 x SDIO interface
1 x DPI (parallel RGB display)
1 x 12S
Up to 4 x PWM channels
Up to 3 x GPCLK outputs

 Graphics

VideoCore V3D VII GPU 800 MHz

 Power supply

External +5V USB-C PSU

 Operating system

Clea OS (Linux Yocto)
Raspberry Pi OS

 Operating temperature

0 - 60 °C

 Dimensions

270,1 x 187,1 x 51,7 mm
