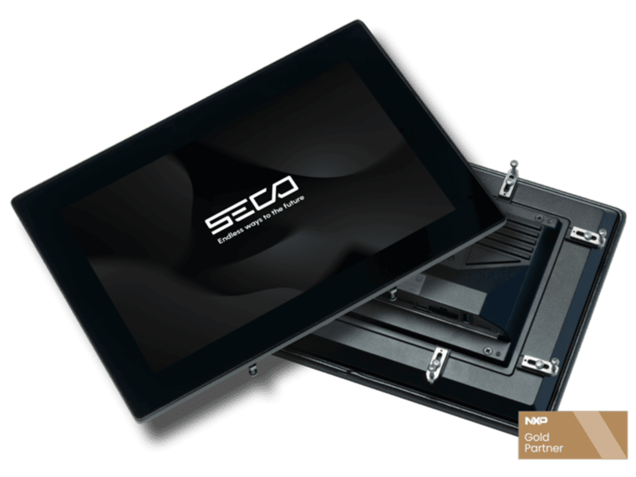

SECO: Modular Vision MX95 – Industrial Edge AI HMI Touch Panel

A 10.1" touch interface made for continuous operation in industrial environments

Modular Vision 10.1 MX95, powered by NXP i.MX95, is a ready-to-integrate industrial HMI, built for projects that need a stable, deployable solution from the start. Designed to standardize the path from evaluation to production, it can be validated, integrated, and rolled out without changing hardware or software foundations.

10.1" Capacitive Touch (P-Cap) Display, 1280 × 800 resolution, ≥400 nits brightness, LVDS interface
IP66 front protection, resistant to dust and splashes
NXP i.MX95 CPU with Arm Mali-G310 GPU and NPU up to 2.0 TOPS
Clea OS pre-installed, with built-in security, monitoring, and update mechanisms

Panel mount ready, clean mechanical integration

The Modular Vision 10.1 MX95 is designed to minimize mechanical risk and ensure reliable operation after installation. It features IP66 front protection for panel-mount applications, providing strong resistance against dust and water.

With an operating temperature range of 0 to 60 °C and a wide DC input for industrial power systems, it is well-suited for demanding industrial environments. The display also offers a backlight lifetime of at least 30,000 hours, while chemically strengthened cover glass enhances durability and protection.

Built to connect without integration friction

A practical and complete interface set to connect controllers, sensors, and external devices in real industrial systems.

Edge AI ready, when you need it

Built on NXP i.MX95, Modular Vision 10.1 MX95 provides a balanced compute architecture for modern HMIs, combining UI performance, real-time control, and on-device AI acceleration.

Dedicated NPU delivering up to 2.0 TOPS
Arm Mali-G310 GPU for responsive 2D/3D UIs and graphics workloads
Heterogeneous cores splitting application logic and real-time tasks (6× Cortex-A55 @1.8 GHz, plus dedicated Cortex-M33 and Cortex-M7)
Up to 16GB LPDDR5 system memory for larger models and multi-stage edge workflows

Applications and use cases

Modular Vision 10.1 MX95 fits the core verticals where a robust embedded HMI is a business enabler, especially when projects need fast integration, repeatable rollouts, and a scalable operating model across fleets and sites.

Smart Clinical record

Real time monitoring of vital signs, access to medical records, and request for clinical reports.

Crowd and Fall Detection

Real time people counting, fall detection, and incident history visualization.

Smart Lobby

Message and notification summaries, tenant information, document requests, and automatic locker unlocking.

Alert Management

Real time monitoring of industrial machinery, remote troubleshooting, and fault resolution.

Quality Inspection

Production line quality inspection and sample integrity verification through computer vision.

Plant Management

Industrial plant monitoring, voice-assisted access to documentation, temperature and system status visualization.

Specifications

Modular Vision 10.1 MX95

4 GB LPDDR5 / 16 GB eMMC

€ 397,06*

Order now

*Price limited to 50 units

CPU

NXP i.MX 95; 6x Cortex-A55 @1.8GHz, 1x M33 core @333MHz, 1x M7 core @800MHz

GPU

Arm Mali-G310 V2 with 2D/3D acceleration

Memory

Soldered-down LPDDR5-6400 memory, up to 4GB total, 32-bit interface, 2 channels

Mass Storage

eMMC 5.1 drive soldered on-board, up to 16GB (boot device)
Micro SD card socket on carrier

Connectivity

1x GB Ethernet on RJ45 on carrier

USB

1x USB 3.1; 1x USB 2.0; 1x USB Type-C; 1x USB Type-A; 1x USB 2.0 customer accessible

Video resolution

10.1-inch, 1280 x 800 pixel, >=400 nits, >=30k hours backlight lifetime, LVDS interface

Serial ports

2x RS232, 1x RS485, 1x CAN

Other interfaces

I²C, SPI, GPIO expansion on 20-pin JST SHD 1.0
2x digital I/O
Speaker output, mono, up to 3 Watt RMS

Power supply

9 VDC ÷ 32 VDC

Operating system

Clea OS (Linux Yocto)

Operating temperature

0 ÷ 60 °C

Dimensions

270.1 x 187.1 x 51.7 mm

Modular Vision 10.1 MX95

8 GB LPDDR5 / 64 GB eMMC

€ 499,52*

Order now

*Price limited to 50 units

CPU

NXP i.MX 95; 6x Cortex-A55 @1.8GHz, 1x M33 core @333MHz, 1x M7 core @800MHz

GPU

Arm Mali-G310 V2 with 2D/3D acceleration

Memory

Soldered-down LPDDR5-6400 memory, up to 8GB total, 32-bit interface, 2 channels

Mass Storage

eMMC 5.1 drive soldered on-board, up to 64GB (boot device)
Micro SD card socket on carrier

Connectivity

1x GB Ethernet on RJ45 on carrier

USB

1x USB 3.1; 1x USB 2.0; 1x USB Type-C; 1x USB Type-A; 1x USB 2.0 customer accessible

Video resolution

10.1-inch, 1280 x 800 pixel, >=400 nits, >=30k hours backlight lifetime, LVDS interface

Serial ports

2x RS232, 1x RS485, 1x CAN

Other interfaces

I²C, SPI, GPIO expansion on 20-pin JST SHD 1.0
2x digital I/O
Speaker output, mono, up to 3 Watt RMS

Power supply

9 VDC ÷ 32 VDC

Operating system

Clea OS (Linux Yocto)

Operating temperature

0 ÷ 60 °C

Dimensions

270.1 x 187.1 x 51.7 mm

From development to rollout on one edge workflow

Build in your own toolchain, deploy through Clea, and run on Modular Vision 10.1 MX95 for low-latency execution at the edge.

Built on Clea OS, SECO’s Yocto-based operating system with security and compliance at its core. It provides capabilities that support compliance with EU cybersecurity regulations such as CRA and RED, including lifecycle updates and vulnerability management.

Application Hub provides ready-to-deploy applications tested and optimized for Modular Vision 10.1 MX95. Applications run directly on the device, leveraging hardware acceleration to enable faster and more predictable edge deployment.

The Developer Center is a central hub for documentation, guides, and development resources to accelerate bring-up, validation and deployment.
