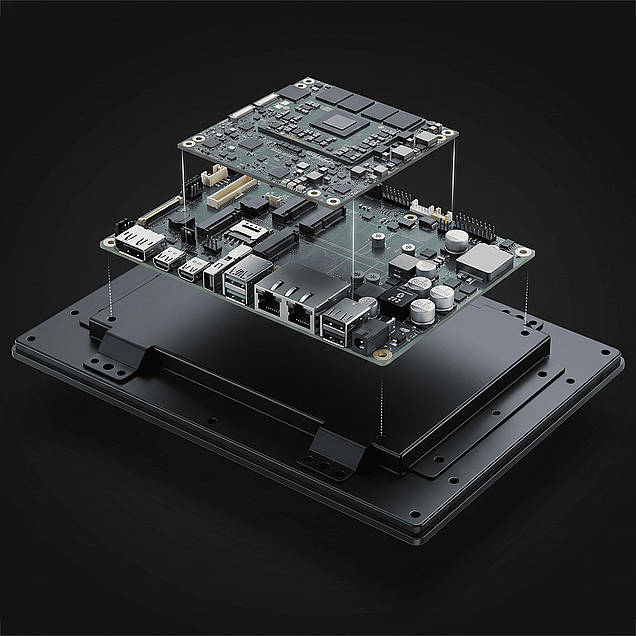

Modular Vision Ultra 15.6 combines a 15.6" HMI base unit with a compatible COM Express® module kit. Keep one validated HMI platform and test, replace or upgrade the compute module without redesigning your system.

Every new processor generation usually means another HMI redesign, with new mechanics, new validation and new certification work. Modular Vision Ultra 15.6 separates the two. The HMI base unit stays the same while you test, replace or upgrade the COM Express® compute layer as requirements evolve.

This lets OEMs and system integrators adopt new COM Express® modules faster, with less engineering effort and a shorter time-to-market.

SOM-COMe-CT6-ASL

Validated open platform

A stable HMI base unit built around an open COM Express® architecture, so your HMI design is not locked to a single processor roadmap.

Plug & play scalability

Select or swap the COM Express® module to match performance, power consumption, graphics and AI requirements. The HMI stays as it is.

Lower certification effort

The HMI base unit and compatible modules are certified individually, helping reduce integration and certification complexity for your final product.

Ready for panel integration

IP65-rated front for panel mounting and a 15.6" Full HD P-Cap touchscreen.

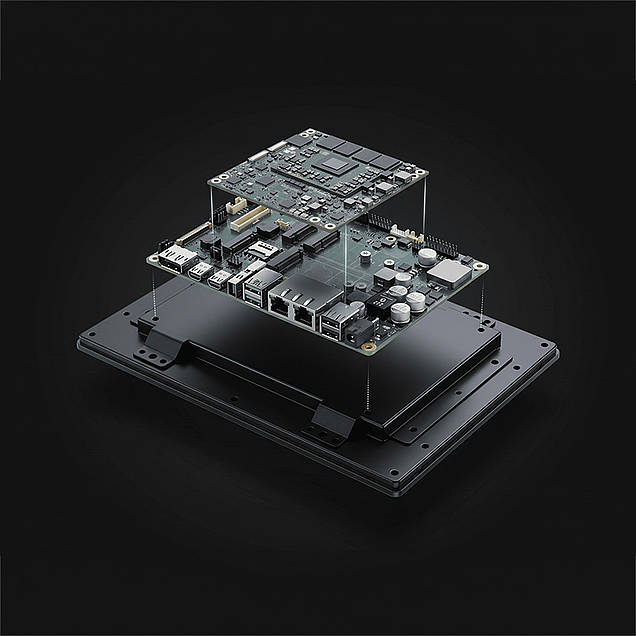

Modular Vision Ultra 15.6 is not a finished panel PC. To build a complete HMI, pair the 15.6" HMI base unit with a compatible COM Express® module kit. The two articles are delivered ready to assemble, then you integrate and certify the final result as your own product.

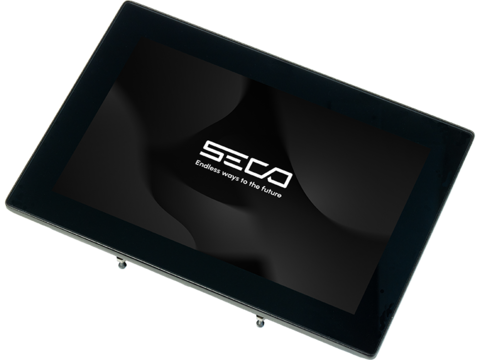

Modular Vision

1 · HMI base unit

Modular Vision Ultra 15.6

Includes

Pre-assembled 15.6" HMI base unit
Power supply

Excludes

COM Express® module kit, selected to complete the system

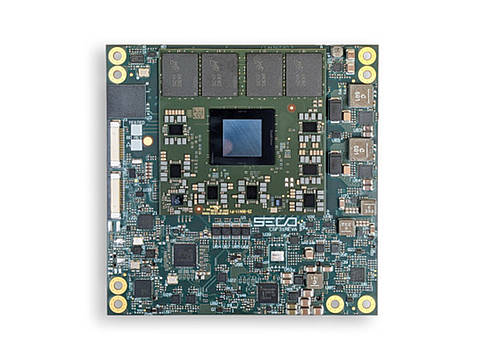

COM-Express Module

2 · COM Express® module kit

Compatible compute kit for Modular Vision Ultra 15.6

Includes

COM Express® module with heatspreader or heatsink pre-mounted
Custom BIOS for Modular Vision Ultra 15.6
Operating system pre-installed
Mounting screws

Explore the compatible COM Express® modules and choose the compute option that best fits your HMI design, integration requirements and product roadmap. Use each module page to review the full specifications.

SOM-COMe-CT6-Dragonwing-IQ-X

SOM-COMe-CT6-Dragonwing-IQ-X

Qualcomm Dragonwing™ IQ-X with Qualcomm® Hexagon™ NPU, up to 45 TOPS for efficient edge AI.

Out of the box: 8-core with 16 GB or 64 GB · 12-core with 32 GB · 256 GB UFS · Windows 11

View module
SOM-COMe-BT6-PTL

SOM-COMe-BT6-PTL

Intel® Core™ Ultra Series 3 processors (Panther Lake-H) with integrated NPU for AI-enabled HMIs.

Out of the box: 256 GB SSD · Clea OS

View module
SOM-COMe-BT6-MTL

SOM-COMe-BT6-MTL

Intel® Core™ Ultra processors (Meteor Lake-H/-U) for graphics-rich, high-performance HMIs.

Out of the box: 128 GB NVMe · Clea OS

View module

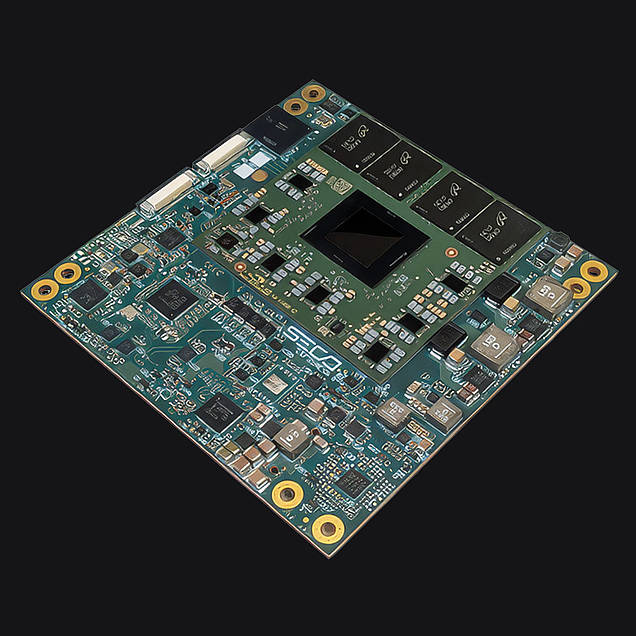

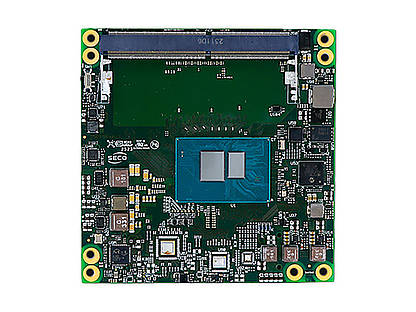

SOM-COMe-CT6-ASL

SOM-COMe-CT6-ASL

Intel Atom® x7000RE Series processors (Amston Lake) for power-efficient, always-on x86 HMIs.

Out of the box: 64 GB eMMC · Clea OS

View module

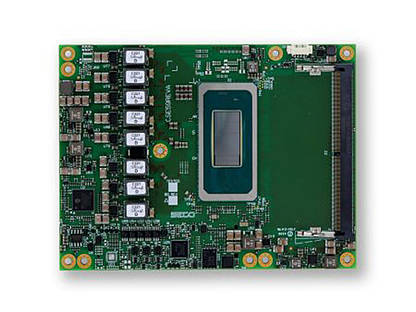

SOM-COMe-BT6-ARL

SOM-COMe-BT6-ARL

Intel® Core™ Ultra processors (Series 2, Arrow Lake-H/-U) for demanding compute and graphics workloads.

View module

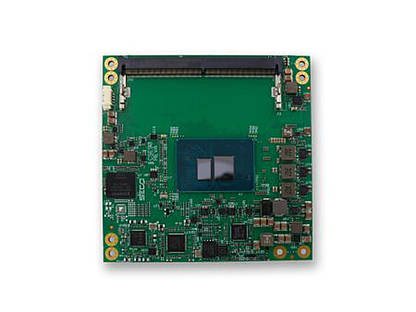

SOM-COMe-CT6-R8000

SOM-COMe-CT6-R8000

AMD Ryzen™ Embedded 8000 Series with Zen 4 cores, RDNA 3 graphics and integrated XDNA NPU.

View module

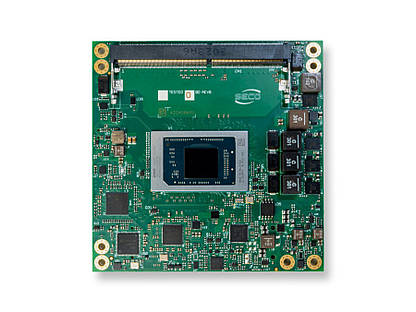

SOM-COMe-CT6-P100

SOM-COMe-CT6-P100

AMD Ryzen™ AI Embedded P100 Series with Zen 5 cores, RDNA 3.5 graphics and up to 50 TOPS NPU.

View module

Most COM Express® interfaces are routed inside the HMI. These are the interfaces available to you on the HMI base unit.

Display 15.6", 1920 × 1080, 400 cd/m², backlight lifetime 50,000 h
Touch P-Cap, 3.0 mm chemically strengthened cover glass
Video outputs 1× DisplayPort, 2× Mini DisplayPort
USB 3× USB 3.0 Type-A, 2× USB 2.0 Type-A
Ethernet Up to 2× Gigabit Ethernet, depending on the module
Power 19–24 V DC input, power supply included
Protection IP65 front, panel mount
Compliance CE / FCC compliant HMI base unit
Dimensions 407.5 × 259.5 × 52.4 mm
Operating systems Clea OS, Windows 11 (depending on the COM Express® module kit)

The COM Express® module kit arrives with the thermal solution already mounted and the operating system pre-installed, so assembly takes minutes. Our get-started videos walk you through every step.

1 · Unbox

Place the HMI base unit and your COM Express® module kit on the bench. Everything you need is in the two boxes.

2 · Mount the module

Mount the COM Express® module, with its pre-mounted heatspreader, onto the carrier board using the included screws.

3 · Power on

Power on and boot straight into Windows 11 with the SOM-COMe-CT6-Dragonwing-IQ-X kit, or Clea OS with its out-of-box experience on kits based on Intel® processors.

01/00

Industrial automation and production lines

Operator panels and line HMIs that keep the same interface across machine generations while the compute scales with the application.

Discover more

Industrial AI applications

Choose an AI-accelerated module for vision inspection, safety monitoring and other on-device AI workloads at the operator station.

Discover more

Retail

Self-service and point-of-sale terminals built on one HMI design, with compute sized for each deployment.

Discover more

Smart cities

Public-facing and control-room interfaces for infrastructure systems that need a validated display platform and flexible compute.

Discover more

Tell us about your application and we will help you pick the right COM Express® module kit. If you need a configuration that is not available out of the box, such as different memory or storage, contact SECO to review the available options.

Modular Vision Ultra 15.6 is also available through SECO partners and value-added embedded distributors.

Contact us

Share your application and integration requirements. SECO will get back to you on the COM Express® module that fits your project.

No. Modular Vision Ultra 15.6 is a 15.6" HMI base unit for OEMs and system integrators. To build a complete HMI, pair it with a compatible COM Express® module kit, then integrate and certify the final system as your own product.

Two articles: the HMI base unit, plus one compatible COM Express® module kit. The module kit includes the COM Express® module with a pre-mounted heat spreader or heatsink, a custom BIOS, the operating system and the mounting screws.

Yes. The HMI base unit is decoupled from the compute, so you can test or move to another validated COM Express® module kit without redesigning the HMI.

SOM-COMe-CT6-Dragonwing-IQ-X kits ship with Windows 11. COM Express® kits based on Intel® processors ship with Clea OS, SECO's industrial operating system, including an out-of-box experience. Operating systems for AMD-based kits will be confirmed at availability.

Most COM Express® interfaces are used inside the HMI. The HMI base unit gives you 1× DisplayPort, 2× Mini DisplayPort, 3× USB 3.0 Type-A, 2× USB 2.0 Type-A and up to 2× Gigabit Ethernet, depending on the module.

The HMI base unit and compatible modules are certified individually. This helps simplify certification of your final system, which remains under your responsibility as the manufacturer.

Contact SECO and describe your requirements, for example memory, storage or operating system. SECO will review the request and get back to you with the options available.
